The lens of glass edge grinding,drilling,chamfering,slot,

Acrylic,PC,PVC,PET products such as window lens carving processing

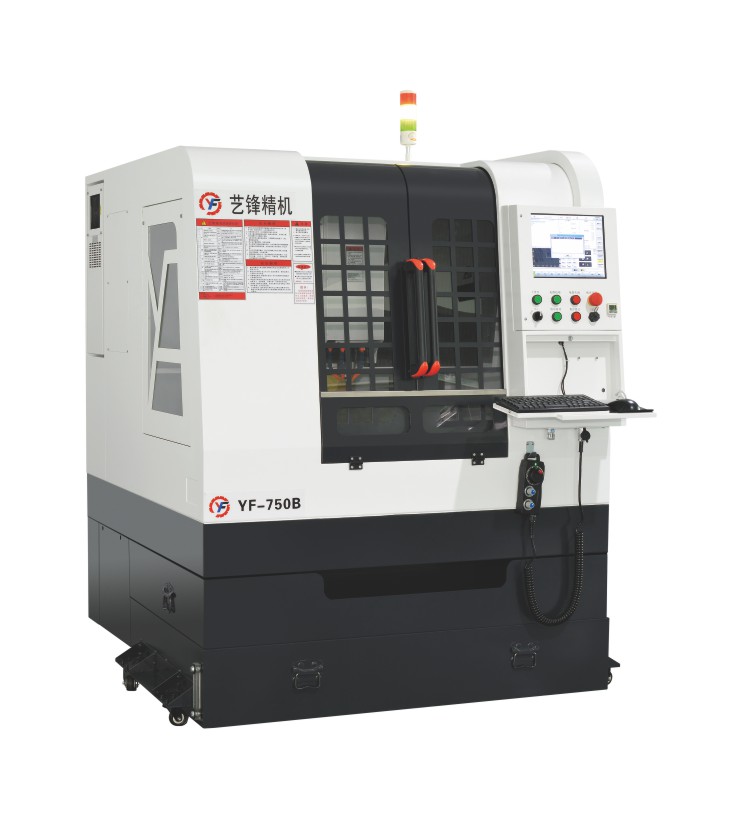

Description                        YF-750B

Table size                 mm     700×500

Table load capacity        kg       80kg

X*Y*ZMovement & Range     mm    350×500×110

Positioning accuracy     mm    0.008/300

Repeatability accuracy     mm      0.005

Spindle power              Kw           1.8

Spindle speed range        rpm          60000

Collet                            ф6/ф4/ф3.175

Air pressure              mpa          0.5-0.6

Total Power                 Kw             5.5

Machine weight（about）   Kg           1800

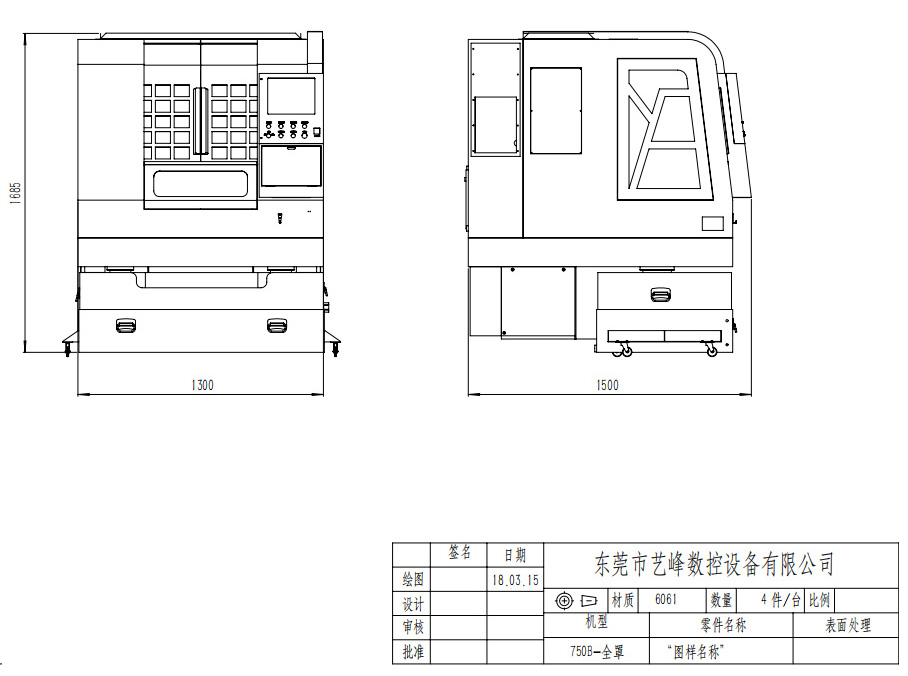

Machine size              mm        1550×1300×1685
